NEMA

Wireless Lighting Control for Smart Outdoor Infrastructure

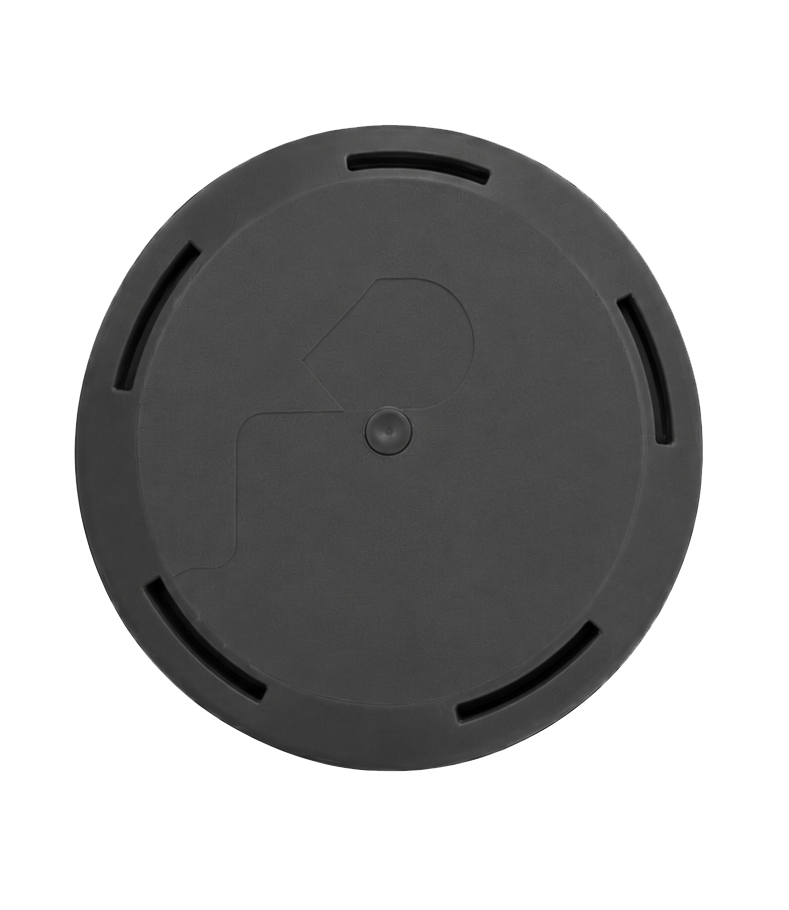

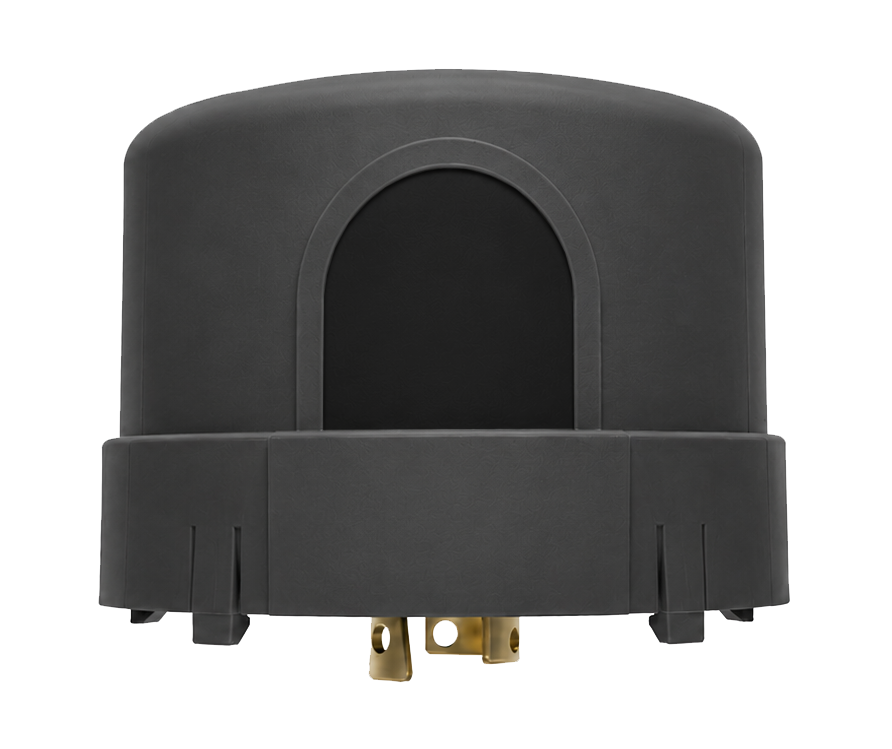

The S4i NEMA Node is a compact Bluetooth Low Energy (BLE) Mesh lighting controller designed to bring intelligent wireless control to outdoor lighting installations. Installed directly onto a standard ANSI C136.41 7-pin NEMA receptacle using a simple twist-lock connection, it converts wired DALI or 0–10V lighting systems into a secure, scalable wireless network.

Built around the Casambi ecosystem, the NEMA Node enables remote commissioning, real-time monitoring, energy metering, adaptive lighting control and cloud connectivity without requiring additional communication wiring.

Whether upgrading existing infrastructure or deploying new smart lighting installations, the S4i NEMA Node provides a simple pathway to connected lighting.

Wireless Intelligence at Every Luminaire

The S4i NEMA Node installs directly onto each luminaire, allowing every fitting to become part of a secure BLE network. With integrated DALI bus power, energy monitoring, photocell functionality and wireless communications, each node becomes an intelligent control point capable of operating independently while contributing to a resilient distributed network.

Supporting both DALI and 0–10V lighting systems, the NEMA Node is equally suited to retrofit projects and new smart infrastructure deployments.

Key Benefits

• BLE Mesh Smart Lighting Control

• Convert conventional DALI or 0–10V lighting into a fully connected BLE Mesh network without additional control cabling.

• Energy Monitoring

• Capture energy consumption, operating hours and D4i performance data directly from compatible drivers to support energy reporting and predictive maintenance.

• Flexible Lighting Compatibility

• Supports DALI, D4i, 0–10V and 1–10V lighting systems, making it suitable for both legacy upgrades and new installations.

• Adaptive Lighting

• An integrated photocell enables automatic switching, daylight harvesting and illuminance-based scene control for improved energy efficiency.

• Built for Outdoor Environments

• IP66-rated, UV-resistant construction with integrated surge protection ensures reliable operation in demanding outdoor environments.


Features

* BLE (BLE 4.0 / BLE 5.0) Mesh communications

* Casambi ecosystem compatible

* Tool-free ANSI C136.41 twist-lock installation

* DALI and 0–10V switchable output

* Integrated DALI bus power supply

* Built-in energy metering

* D4i driver data support

* Integrated ambient light sensor

* Up to 15A switching capacity

* OTA (Over-the-Air) firmware updates

* AES128 encrypted wireless communications

* Self-healing Bluetooth Mesh network

* IP66 UV-resistant enclosure

* 6kV surge protection

* Operating temperature from -35°C to +70°C

Ideal For

* Sports and parks lighting

* Road and street lighting

* Smart city infrastructure

* Car parks and public spaces

* University and campus environments

* Commercial precincts

* Industrial facilities and warehouses

* Utility and infrastructure lighting

* Energy-efficient retrofit projects

Why Choose the S4i NEMA Node?

The S4i NEMA Node combines intelligent wireless lighting control with robust outdoor reliability in a compact, standards-compliant device.

Supporting remote commissioning, real-time monitoring, energy analytics and adaptive lighting, it enables councils, utilities, contractors and infrastructure owners to modernise lighting networks while reducing installation costs and simplifying long-term maintenance.

Designed around the proven Casambi Bluetooth Mesh platform, the NEMA Node delivers a scalable foundation for future smart city and connected infrastructure applications.

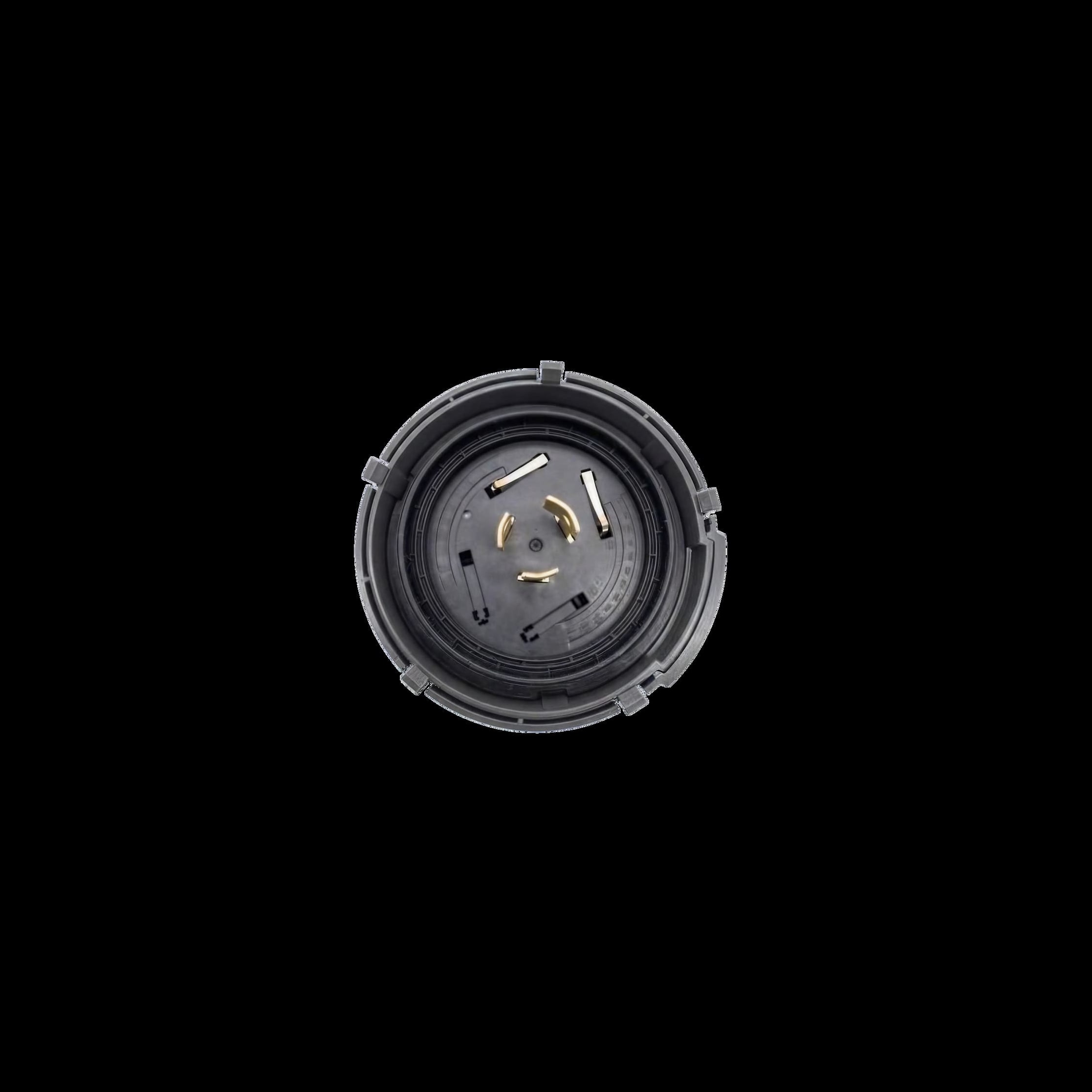

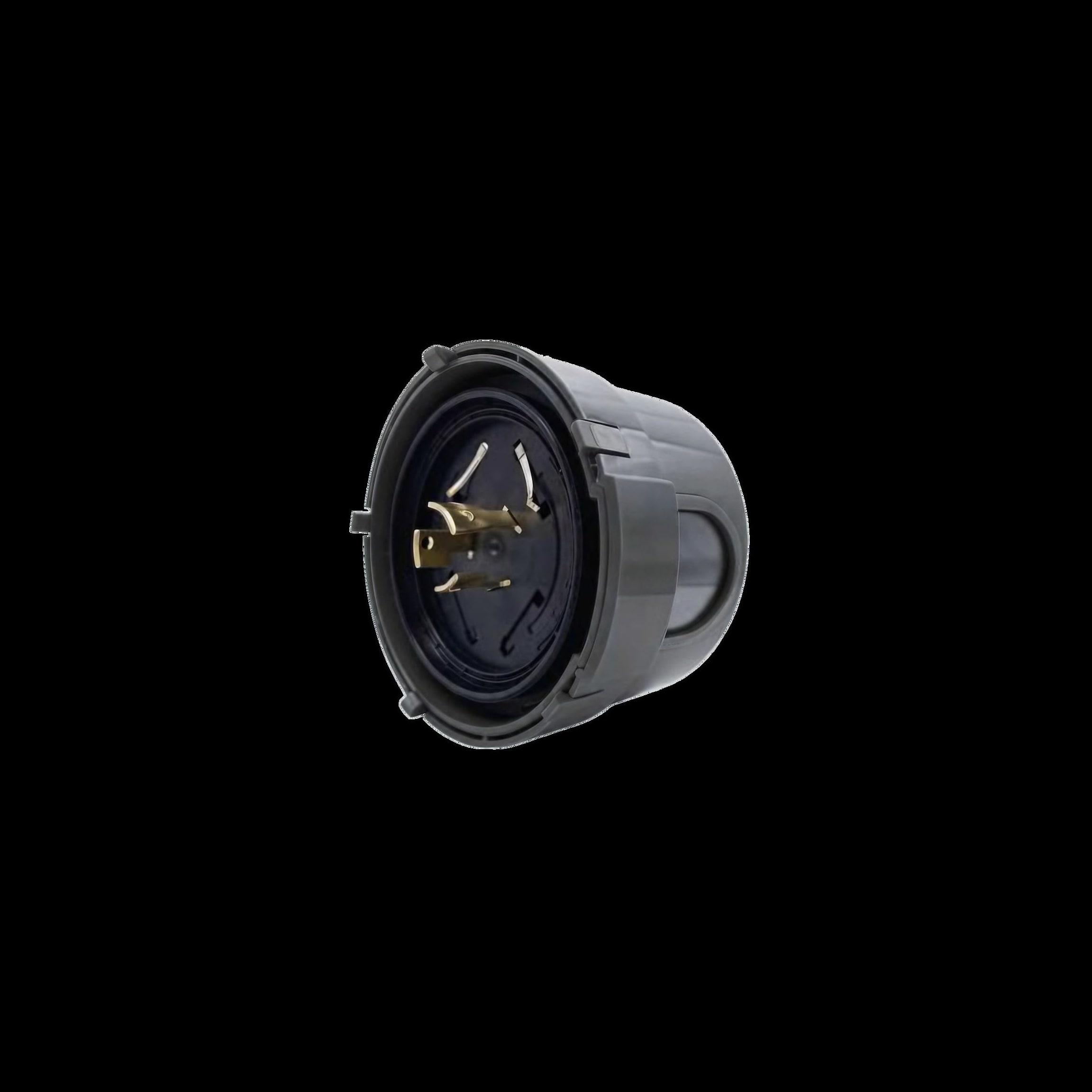

NEMA Receptacle (Accessory)

The Foundation for NEMA-Based Smart Lighting

The S4i NEMA Receptacle is an optional accessory designed to provide a reliable mounting interface for the S4i NEMA Node and other ANSI C136.41 compatible control devices.

Featuring a North-Orientation-Free design, gold-plated signal contacts and standard twist-lock installation, the receptacle enables fast installation while providing secure power and signal connections for intelligent lighting controls.

Key Benefits

• Fast Installation

• Standard ANSI C136.41 twist-lock interface enables simple installation and replacement without specialised tools.

• Universal Compatibility

• Supports DALI, 0–10V and 1–10V lighting systems with both 5-pin and 7-pin wiring configurations.

• Reliable Signal Performance

• Gold-plated contacts provide consistent low-voltage communication and long-term reliability.

• Built for Outdoor Conditions

• UV-resistant construction, silicone weather seal and wide operating temperature range deliver dependable outdoor performance.

• Future-Ready Infrastructure

• Provides the industry-standard interface required for smart lighting upgrades and connected control devices.


Features

* ANSI C136.41 compliant

* North-Orientation-Free installation

* 7-pin twist-lock receptacle

* Gold-plated low-voltage contacts

* 15A load rating

* Supports DALI, 0–10V and 1–10V

* 360° rotation limiting

* Silicone weather gasket

* UV-resistant PBT construction

* UL, cUL, CE, CB and RoHS certified

* Operating temperature from -40°C to +70°C

Ready to Upgrade Your Lighting Infrastructure?

Talk to S4i about the NEMA Node and NEMA Receptacle to discover a smarter, simpler way to deploy connected outdoor lighting built on the Casambi ecosystem.
